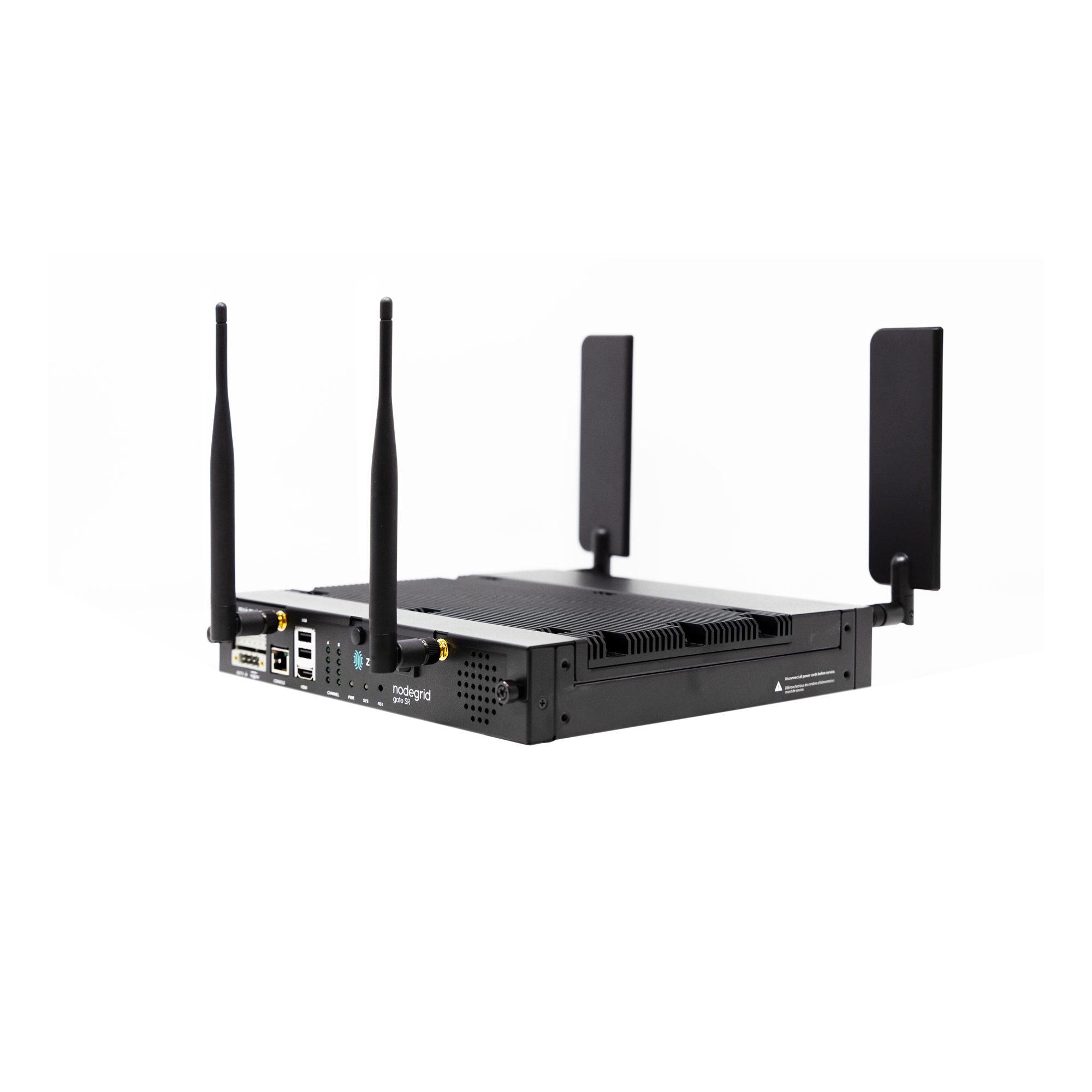

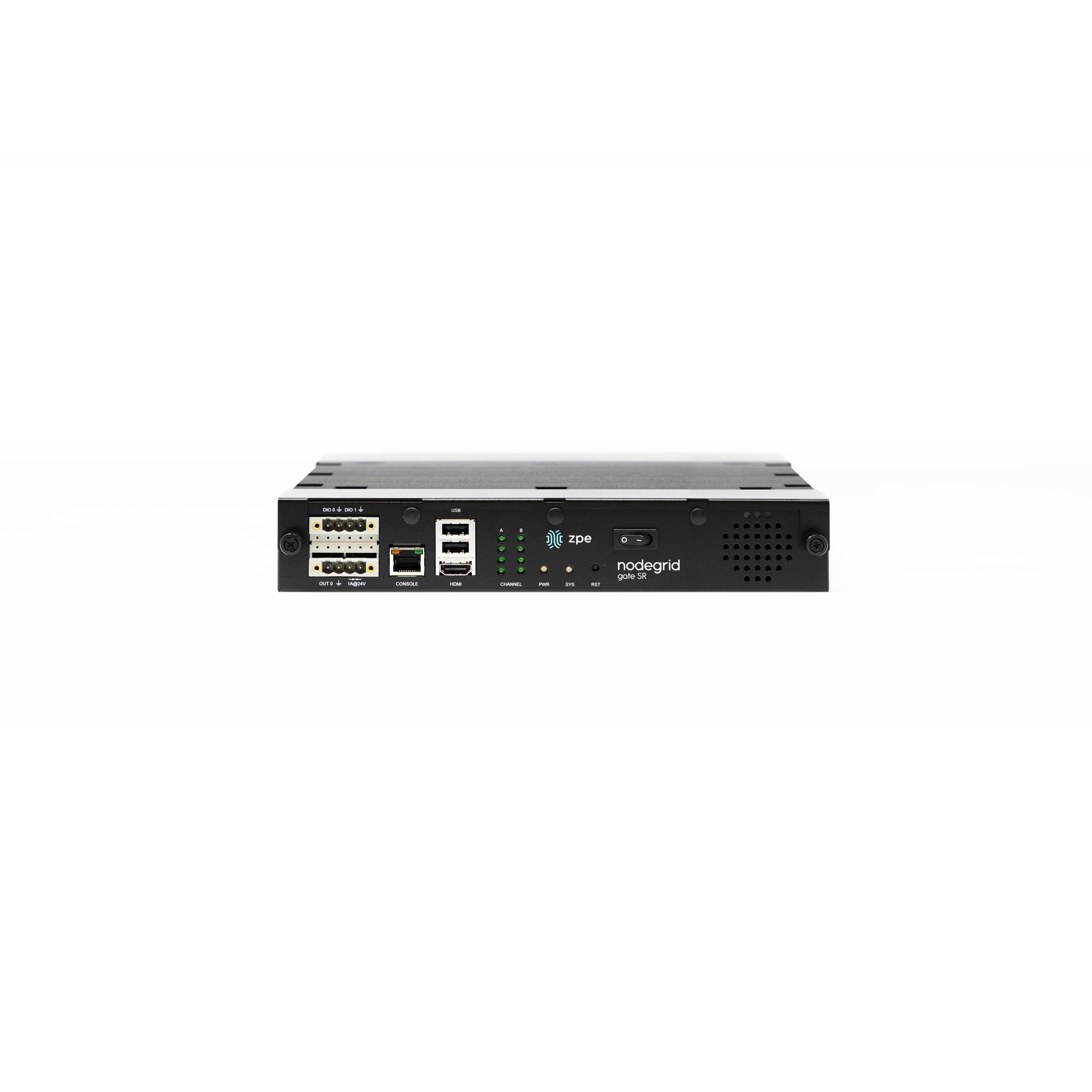

Nodegrid Gate SR

Open the door to smooth deployments and streamlined network management

If you need more capabilities at your NOC, or less mess at your branch offices, the Gate SR is the all-in-one solution you need. At your data center or remote locations, this workhorse connects you to dozens of physical assets while helping virtualize more of your network. Deploy fast, save time, and cut CAPEX & OPEX with the appliance that streamlines network management.



  • Quickly set up all your solutions using one powerful box
  • Get plug-n-play deployments with zero touch provisioning
  • Virtualize more functions & cut your stack with an all-in-one device

Nodegrid Gate SR – Video Overview

Your gateway to power & efficiency

Get effortless deployments by connecting dozens of assets to a single box, including PoE IoT devices. Virtualize your environment, host third-party applications, and control everything (even device power) thanks to remote out-of-band management. Weighing in at just two pounds, the Gate SR is the perfect platform for consolidated infrastructure management.

Get more right out of the Gate

The Gate SR is a powerful & flexible platform, featuring a multi-core Intel CPU and 64-bit Linux OS. Offering more than two-dozen ports and additional compute power, this compact powerhouse enables you to run more applications, Docker containers, and VNFs than competing solutions.

Do you need to quickly deploy a remote site and an array of devices?

Set up Gate SR with zero touch provisioning to automatically configure appliances, even IoT devices like thermal sensors, cameras, environmental monitors, & more.

Do you need to reduce MTTR at your most busy data center or branch location?

Deploy your Gate SR for in-depth, remote out-of-band management of your entire stack.
Nodegrid Gate SR serves as a perfect solution to keeping remote BRANCH locations functioning properly. With the ZPE Cloud, deploying and provisioning your remote devices is fast, consistent and secure. Nodegrid Gate SR allows for 24 x 7 remote present at the EDGE of the network. With the ability to add Wi-Fi connectivity and 4G LTE failover, locations without IT personnel on staff are just a simple session away from resolution.
Software

Software

  • Nodegrid OS for direct 3rd-party app hosting, VNFs, & Docker & Kubernetes containers
  • Nodegrid Manager — use your browser for fast, secure access to your network
  • Zero touch provisioning to automatically deploy dozens of devices
  • Proactive monitoring & alerting to prevent downtime
  • Optimized for remote out-of-band management, SASE, & SD-Branch
Hardware

Hardware

Hardware

  • Dozens of ports for connecting all your devices, including IoT via PoE
  • More storage thanks to available 128GB Solid State Drive
  • Wi-Fi ready via internal card or PoE Access Point
  • Routing and switching capabilities to further reduce your stack
  • Two, dual-SIM 4G/LTE cellular failover slots to prevent downtime
dc resilience 650 x 400

Network down?

Nodegrid’s cellular failover has you covered

The Nodegrid SR family’s advanced cellular module delivers backup connectivity that’s reliable, fast, & automatic.

  • Get global coverage via 4G LTE & 3G fallback
  • Make business unstoppable with blazing Cat-12 speeds
  • Save your peace of mind thanks to 4x carrier redundancy

Pre-Validated Virtualized Network Functions ready to deploy on Nodegrid

Deploy Nodegrid SR devices and get seamless customization with these pre-validated apps. Virtualize for what you need, from efficient SD-WAN & firewall applications, to right-fit guest OS & management solutions.

We’re always adding more, so take your pick and let Nodegrid do the rest.

PALogo
Fortinet
SAP
128T
Juniper
Windows

Features

  • Secure, fast and consistent deployments across your branches with the ZPE Cloud
  • Software Defined Networking, Network Function Virtualization, Guest OS, Kubernetes, and Docker capabilities
  • Minimizes MTTR, downtime and expenses with secure, centralized remote device access & control
  • Increases site reliability with open industry standard hardware, and easy-to-use software
  • Zero Touch Provisioning (ZTP) for fast and easy setup in remote locations
  • Integrates with ZPE Cloud and ZPE Systems Nodegrid Manager vendor-neutral, unified management solution
  • Direct Linux shell, HTML5 cross-device web access and command line interface
  • Modern 64-bit Linux Kernel for fast security patching and widespread software availability
  • Kubernetes and Docker-optimized for quick, flexible script and application integration
  • Extended Automation based on actionable real-time data
  • Failover to 4G/LTE modem
  • Gateway and multi-routing table capability
  • SSL VPN and IPsec
  • DHCP server – extra IPs for your remote site or replace your current router altogether
  • Firewall – built in and turns on with a checkbox
  • Secure – selectable encrypted cryptographic protocols and cypher suite levels, configuration checksum™
  • Power control and monitoring – get alerts on suboptimal IT device health before malfunctions occur and solve problems automatically
  • Orchestration – Puppet, Chef, Ansible, RESTful and ZPE Cloud
  • Wi-Fi hotspot ready via internal card or add your AP (Access Point) via PoE+ port
  • High density and flexibile interfaces for greater connectivity

Specifications

Hardware Specifications
CPU
  • Multi-core Intel x86_64bit CPU
  • Memory & Storage
  • 8-32GB of DDR4 DRAM, 32GB Hardware EncryptedSSD

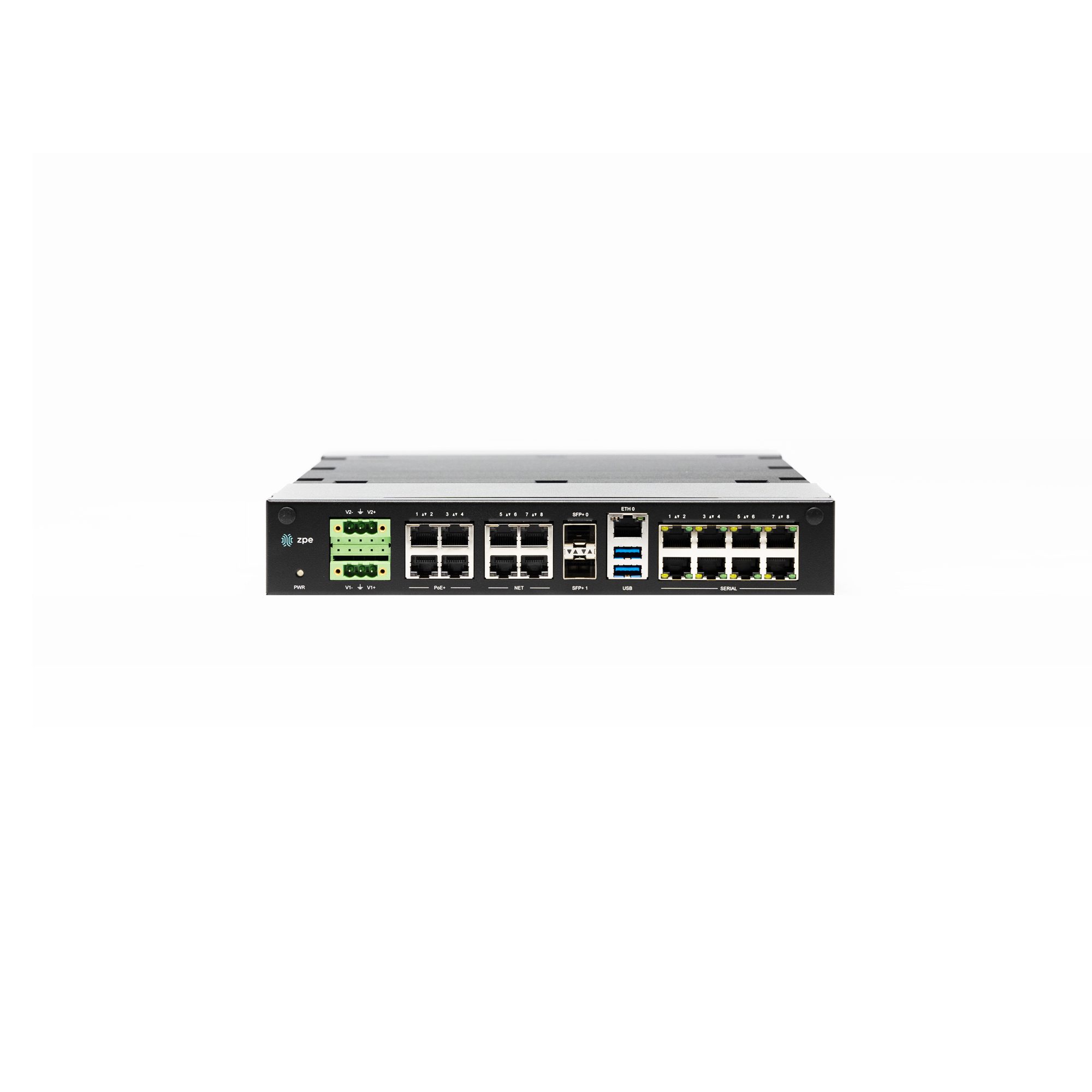

  • Interfaces
  • 8 x RJ45 Serial ports
  • 2 x SFP+ (10G)
  • 1 x Gigabit (10/100/1000BT) Ethernet interfaces on RJ45
  • 4 x Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 with Built-in Switch
  • 4 x PoE+ Gigabit (10/100/1000BT) Ethermet interfaces on RJ45 with Built-in Switch
  • 2 x GPIO Port
  • 1 x Digital Out Port
  • 1 x Relay Port
  • 2 x USB 3.0 Host on Type A
  • 2 x USB 2.0 Hosts on Type A
  • 1 x Wi-Fi – optional
  • 2 x Cellular Slots with Dual SIM – Optional
  • 1 x HDMI port
  • Software Specifications
    Port Access
  • Direct access by port name, TCP port, device name and IPv4/IPv6
  • High performance port login: <1 sec on SSH, <3 sec on Telnet
  • 1,000+ simultaneous sessions
  • Port sharing
  • Command line interface (CLI)
  • Port custom field support, port icon configuration, port search
  • Device clustering across multiple Nodegrid units
  • Break-over SSH support
  • System Management
  • Extensible automated control based on actionable real-time data
  • Web GUI management portal, command line interface (CLI), Linux root shell
  • Zero Touch Provisioning for configuration and firmware updates
  • Multiple and customizable user levels of access
  • Auto-discovery via network scan
  • NTP support, global time zone support
  • SNMP
  • Orchestration Integration: Puppet, Chef, Ansible, RESTful, ZPE Cloud, and Nodegrid Manager
  • Access Protocols
  • HTTPS, SSHv1 and SSHv2, optional HTTP and Telnet
  • Device View Options
  • Tree, Table, Geo Map, Node and WEB with search capability
  • Integrates with ZPE Cloud
  • Security
  • X.509 SSH certificate support, 4096-bit encryption keys
  • Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1)
  • Selectable cypher suite levels: high, medium, low, custom
  • SSL VPN – Client and Server
  • IPsec with support for multi sites
  • Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication
  • Local, backup-user authentication support
  • User-access lists per port
  • Group/role-based authorization: AD/LDAP, RADIUS, TACACS+
  • Fine grain and role based access control
  • Firewall – IP packet and security filtering, IP forwarding support
  • MD5 / SHA System Configuration Checksum™
  • System event syslog and data logs
  • Custom security settings
  • Strong password enforcement
  • Operating System
  • Built-in 64-bit Linux kernel (Nodegrid OS)
  • Infrastructure Specifications
    Power
  • 36V-75 VDC dual power input (redundant)
  • Power consumption 45W typical
  • AC Power adapter (add-on), 100-240V~, 1.2A, 50-60Hz, Operating temperature: -25 to 60° C
  • Physical
  • Front-Rear mounting brackets
  • Size (L x W x H): 241.3 x 260.35 x 44.45 mm (9.5 x 10.25 x 1.75 in)
  • Weight: .9 kg (2 lb)
  • Shipping weight: 3.6 kg (8.0 lb)
  • Shipping (L x W x H): 349.25 x 374.65 x 177.8mm (13.75 x 14.75 x 7 in)
  • Environmental
  • Operation: -20 to 60° C (-4 to 140° F), 5-95% RH, non-cond.
  • Storage: -20 to 67° C (-4 to 153° F), 5-95% RH, non-cond.
  • Ordering Information

    Channel SKU
    Description
    CPU
    Memory
    Power
    Special
    ZPE-GSR-48-Base
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 4-Core Intel 64bit CPU, 8GB DDR4, 32GB SLC. Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    4 Cores
    8 GB
    AC & DC
    Base
    ZPE-GSR-48-W5
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 4-Core Intel 64bit CPU, 8GB DDR4, 32GB SLC, Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    4 Cores
    8 GB
    AC & DC
    Wi-Fi
    ZPE-GSR-48-4G
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 4-Core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 4G LTE (CAT12). Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    4 Cores
    8 GB
    AC & DC
    4G
    ZPE-GSR-48-4G-W5
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 4-Core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    4 Cores
    8 GB
    AC & DC
    4G, Wi-Fi
    ZPE-GSR-48-4G-W5-D128G
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 4-Core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac), Disk2:128GB. Dual DC input (wide range DC) with one AC power adapter & cord included. Order ZPE-GSR-PSU for additional power supply. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    4 Cores
    8 GB
    AC & DC
    4G, Wi-Fi, Second Storage
    ZPE-GSR-48-5G
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 4-Core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 5G LTE (Sub 6 with 4G/LTE CAT20). Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    4 Cores
    8 GB
    AC & DC
    5G
    ZPE-GSR-816-Base
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 13X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC. Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support & HW warranty. Includes 90-day ZPECloud.com subscription.
    8 Cores
    16 GB
    AC & DC
    Base
    ZPE-GSR-816-W5
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC, Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Dual DC input (wide range DC). AC power adapter not included, order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    8 Cores
    16 GB
    AC & DC
    Wi-Fi
    ZPE-GSR-816-4G
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC, 4G LTE (CAT12). Dual DC input (wide range DC). AC power adapter not included, order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    8 Cores
    16 GB
    AC & DC
    4G
    ZPE-GSR-816-4G-W5
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 02.11ac). Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    8 Cores
    16 GB
    AC & DC
    4G, Wi-Fi
    ZPE-GSR-816-4G-W5-D128G
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac), Disk2:1216GB. Dual DC input (wide range DC). AC power adapter not included, order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    8 Cores
    16 GB
    AC & DC
    4G, Wi-Fi, Second Storage
    ZPE-GSR-816-5G
    ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC, 5G LTE (Sub 6 with 4G/LTE CAT20). Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    8 Cores
    16 GB
    AC & DC
    5G

    Accessories

    Accessory
    Description
    GSR-PSU
    54VDC external 100-240 VAC, 50/60 Hz power adapter
    PCI-WIFI-B
    Mini PCI Wi-Fi with dual antennas and cables
    M2-CELL-C
    M.2 Cellular – 4G/LTE with dual-SIM slots, antennas and cables
    GSR-SATA
    SATA Storage Expansion Kit (HDD/SDD not included)
